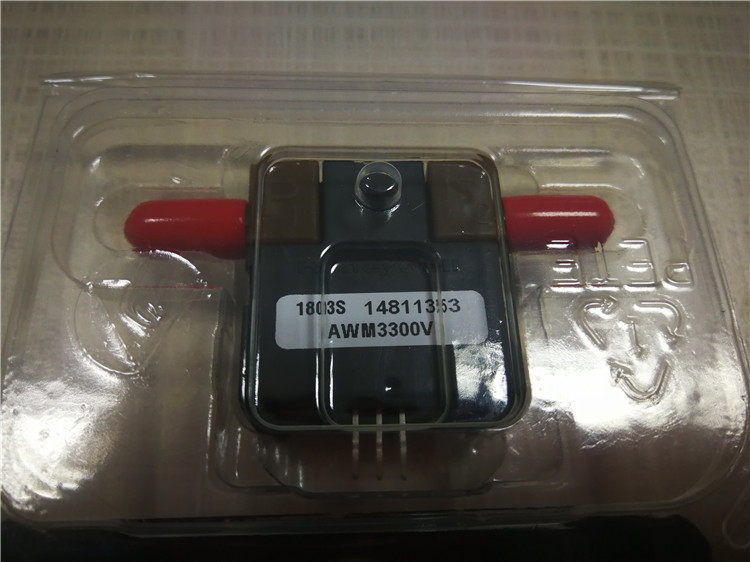

Honeywell霍尼韦尔气体流量传感器AWM3300V

Specifications
Function:AirFlow
Output:Voltage
Range, Measurement:0.04 CFM (1 L/Min.)
Series:AWM3000 Series
Supply Voltage:15 VDC
Technology:Thermal Conductive
Termination:Wired Connector
Voltage, Switching:5 VDC

Overview
The AWM2000 Series microbridge mass airflow sensor is a passive device comprised of two Wheatstone bridges. The heater control circuit is required for operation per specifications. The sensing bridge supply circuit-in is also required for operation per specifications. These two circuits are not on board the package and must be supplied in the application. The differential amplifier is a useful interface for the sensing bridge. It can be used to introduce the gain and to introduce voltage offsets to the sensor output.

The AWM3000 Series is amplified; therefore, it can be used to increase the gain and to introduce voltage offsets to the sensor output. The AWM3000 Series is ideal for ultra-low flow applications. Also, the heater control circuit and the sensing bridge supply circuit are on board the AWM3000 package.

Features:
Output Voltage Varies in Proportion to the Mass Air or Other Gas Flow Through the Package Ports
Low Differential Pressure Sensing
AWM2000 Products Have Bidirectional Sensing Capabilities
Actual Mass Air Flow Sensing (AWM2000)
AWM3000 Products Are Laser Trimmed for Improved Sensor Interchangeability
Flow Sensing Up to 1.0 SLPM (AWM3000)
Low Differential Pressure Sensing (AWM3000)

Specifications:
Operating Temperature: –13° to +185°F
