FMZ 5000 fire detection and extinguishing
control panels – modular systems that can

be linked for any application

Modular control panels for large sites and multifunctional systems
The FMZ 5000 XL 21 HE, FMZ 5000 XL 31 HE and FMZ 5000 XL 40 HE large modular control panels come
in 19" wall-mounted or stand-alone cabinets, meet the challenges of major projects and are suitable for the
complex management and monitoring of large-scale extinguishing systems.

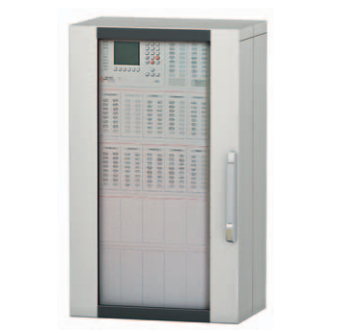

FMZ 5000 XL 21 HE
Larger core version of the FMZ 5000 in a 19" wallmounted
cabinet with a height of 21 RU.

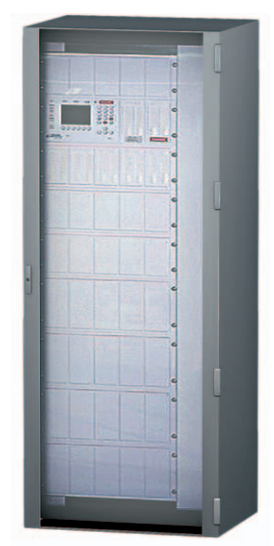

FMZ 5000 XL 31 HE und 40 HE
The largest core version of the FMZ 5000. Comes
in a 19" stand-alone cabinet with a height of either
31 or 41 RU and variable depth, width and base
dimensions.


The following applies to all modular
control panels:
 They are suitable for connecting standard and
industry-suitable fi re detectors with addressable or
conventional technology
 Open protocols are used to transfer data, fi re
alarms and fault messages to management systems
and control stations
 Alerts displayed on a large LC display and LEDs,
menu-based user interface with soft keys
 Identical function modules and components for all
versions to keep operating costs down and
facilitate expansion
FM

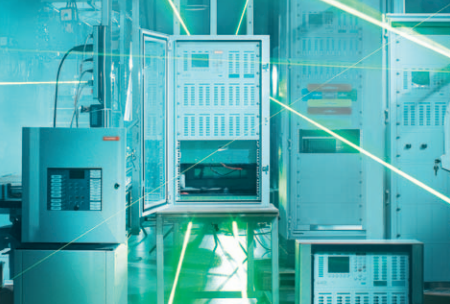

Linked systems
All FMZ 5000 fi re detection and extinguishing
control panels can be connected using the ringshaped,
redundant MxNet system. Existing systems
can be retrospectively networked or expanded to
form a network by adding control panels. For this
reason, the system can always be adapted to
architectural modifi cations or changes in manufacturing
processes. Central units such as fi re
detection information systems, site plan boards
and log printers can also be incorporated into the
network – giving a more rapid overview of the
conditions in the areas being protected.

BENEFITS

 Increased functionality
Linking components such as fi re detection
control panels, extinguishing control panels
and display panels signifi cantly increases the
functionality and value of the fi re protection
concept.
 Extended message forwarding
All or selected alerts can be displayed to
multiple recipients and centrally sent to control
stations responsible for managing aspects of
the building’s safety – such as building access.
 Communication via open protocols
Communication between linked fi re detection
systems and the next stage up in the hierarchy
takes place via open protocols; no special
adjustments are required.
 Comprehensive fire control
Enables centralised management should a fi re
occur – events in one place can trigger
responses in any number of other locations.
 Facilitated maintenance
Maintenance of the entire system is made
signifi cantly easier by on-site access points
or remote access.
 International certifications
Minimax fi re detectors and fi re detection and
extinguishing control panels boast besides VdS
(German Association of Property Insurers)
certifi cation numerous relevant international
certifi cations.
 Further information
A complete overview along with technical
documentation for all fi re detectors and fi re
detection and extinguishing control panels and
related products can be found in the “Product
catalogue Fire Detection Systems” on our
website at www.minimax.de
