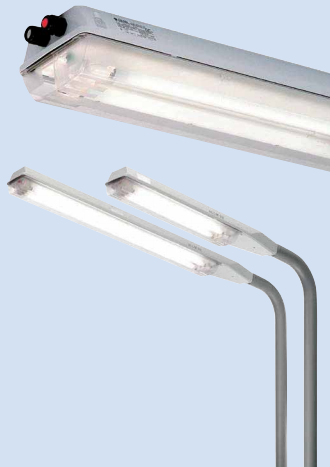

Ex-light fitting (LED and fluorescent) eLLK 92... CSA

For CSA-applications. Suited for use outdoors due to high UV resistance. Easy to install due to generously dimensioned connection compartment.

Ordering details
eLLK/M 92 LED 400/800

Type Version Terminals Throughwiring


singleended
Throughwiring


twinended
Cable gland/
thread
Threaded
plug
Blanking


plug
Order No
4000 K
.
5600 K
eLLK 92 LED 400 - 4000 K / 5600 K
eLLK 92 LED 400 1/6-1K 1 x 6 x – 2 x M25, Plastic 1 1 2265 500 101 1 2265 502 101
eLLK 92 LED 400 2/6-2K 2 x 6 – x 2 x M25, Plastic 2 x M25 1 2265 500 103 1 2265 502 103
eLLK 92 LED 400 1/6-1M 1) 1 x 6 x – 2 x M20, metal thread 1 x M20 1 2265 500 109 1 2265 502 109
eLLK 92 LED 400 2/6-2M 1) 2 x 6 – x 4 x M20, metal thread 2 x M20 1 2265 500 111 1 2265 502 111
eLLK 92 LED 400 CSA3) 1/6- NPT 1 x 6 x – 2 x M25 - 3/4’’ Myers hub 2 x M25 1 2265 500 309 on request
eLLK 92 LED 400 CSA3) 1/6- NPT 1 x 6 x – 2 x M25 - 1/2’’ Myers hub 2 x M25 1 2265 500 310 on request
eLLK 92 LED 400 CSA3) 2/6- NPT 2 x 6 – x 2 x M25 - 3/4’’ Myers hub 2 x M25 1 2265 500 311 on request
eLLK 92 LED 800 - 4000 K / 5600 K
eLLK 92 LED 800 1/6-1K 1 x 6 x – 2 x M25, Plastic 1 1 2266 500 101 1 2266 502 101
eLLK 92 LED 800 2/6-2K 2 x 6 – x 2 x M25, Plastic 2 x M25 1 2266 500 103 1 2266 502 103
eLLK 92 LED 800 1/6-1M 1) 1 x 6 x – 2 x M20, metal thread 1 x M20 1 2266 500 109 1 2266 502 109
eLLK 92 LED 800 2/6-2M 1) 2 x 6 – x 4 x M20, metal thread 2 x M20 1 2266 500 111 1 2266 502 111
eLLK 92 LED 800 CSA3) 1/6- NPT 1 x 6 x – 2 x M25 - 3/4’’ Myers hub 2 x M25 1 2266 500 309 on request
eLLK 92 LED 800 CSA3) 1/6- NPT 1 x 6 x – 2 x M25 - 1/2’’ Myers hub 2 x M25 1 2266 500 310 on request
eLLK 92 LED 800 CSA3) 2/6- NPT 2 x 6 – x 2 x M25 - 3/4’’ Myers hub 2 x M25 1 2266 500 311 on request
eLLM 92 LED - 4000 K / 5600 K
eLLM 92 LED 400 1/3-1K 1 x 3 – – 1 x M25, Plastic 1 2268 500 101 1 2268 502 101
eLLM 92 LED 800 1/3-1K 1 x 3 – – 1 x M25, Plastic 1 2269 500 101 1 2269 502 101
eLLK 92 LED 400 V-CG-S - 4000 K / 5600 K 2)
eLLK 92 LED 400 V-CG-S 2/6-2K 2 x 6 – x 2 x M25, Plastic 2 x M25 1 2265 510 103 1 2265 512 103
eLLK 92 LED 400 V-CG-S 2/6-2M 1) 2 x 6 – x 4 x M20, metal thread 2 x M25 1 2265 510 111 1 2265 512 111
eLLK 92 LED 800 V-CG-S - 4000 K / 5600 K 2)
eLLK 92 LED 800 V-CG-S 2/6-2K 2 x 6 – x 2 x M25, Plastic 2 x M25 1 2266 510 103 1 2266 512 103
eLLK 92 LED 800 V-CG-S 2/6-2M 1) 2 x 6 – x 4 x M20, metal thread 2 x M25 1 2266 510 111 1 2266 512 111
eLLK 92 LED 400 HT für Tu ≤ +55 °C - 4000 K / 5600 K
eLLK 92 LED 400 HT 1/6-1K 1 x 6 x – 2 x M25, Plastic 1 1 2265 550 101 1 2265 552 101
eLLK 92 LED 400 HT 2/6-2K 2 x 6 – x 2 x M25, Plastic 2 x M25 1 2265 550 103 1 2265 552 103
eLLK 92 LED 400 HT 1/6-1M 1) 1 x 6 x – 2 x M20, metal thread 1 x M20 1 2265 550 109 1 2265 552 109
eLLK 92 LED 400 HT 2/6-2M 2 x 6 – x 4 x M20, metal thread 2 x M20 1 2265 550 111 1 2265 552 111
eLLK 92 LED 800 HT für Tu ≤ +55 °C - 4000 K / 5600 K
eLLK 92 LED 800 HT 1/6-1K 1 x 6 x – 2 x M25, Plastic 1 1 2266 550 101 1 2266 552 101
eLLK 92 LED 800 HT 2/6-2K 2 x 6 – x 2 x M25, Plastic 2 x M25 1 2266 550 103 1 2266 552 103
eLLK 92 LED 800 HT 1/6-1M 1) 1 x 6 x – 2 x M20, metal thread 1 x M20 1 2266 550 109 1 2266 552 109
eLLK 92 LED 800 HT 2/6-2M 1) 2 x 6 – x 4 x M20, metal thread 2 x M20 1 2266 550 111 1 2266 552 111
Scope of delivery including LED-module, without fixing material
Metal cable glands see catalogue part 2: 2.3.12 ff
1) with metal thread, without cable gland
2) for operation with CEAG-emergency supply system
3)for use according to NEC-standards

eLLK 92 LED 400 NE 2)
eLLK 92 LED 400 NE 1/6-1K 1 x 6 x – 2 x M25, plastic 1 1 2260 585 101 1 2260 586 101
eLLK 92 LED 400 NE 2/6-2K 2 x 6 – x 2 x M25, plastic 2 x M25 1 2260 585 103 1 2260 586 103
eLLK 92 LED 400 NE 1/6-1M 1) 1 x 6 x – 2 x M20, metal thread 1 x M20 1 2260 585 109 1 2260 586 109
eLLK 92 LED 400 NE 2/6-2M 1) 2 x 6 – x 4 x M20, metal thread 2 x M20 1 2260 585 111 1 2260 586 111
eLLK 92 LED 400 NE 1/6-1M 1) 1 x 6 – x 2 x M25, metal thread 2 x M25 1 2260 585 609 1 2260 586 609
eLLK 92 LED 400 NE 2/6-2M 1) 2 x 6 – x 4 x M25, metal thread 4 x M25 1 2260 585 611 1 2260 586 611
eLLK 92 LED 800 NE 2)
eLLK 92 LED 800 NE 1/6-1K 1 x 6 x – 2 x M25, plastic 1 1 2261 585 101 1 2261 586 101
eLLK 92 LED 800 NE 2/6-2K 2 x 6 – x 2 x M25, plastic 2 x M25 1 2261 585 103 1 2261 586 103
eLLK 92 LED 800 NE 1/6-1M 1) 1 x 6 x – 2 x M20, metal thread 1 x M20 1 2261 585 109 1 2261 586 109
eLLK 92 LED 800 NE 2/6-2M 1) 2 x 6 – x 4 x M20, metal thread 2 x M20 1 2261 585 111 1 2261 586 111
eLLK 92 LED 800 NE 1/6-1M 1) 1 x 6 – x 2 x M25, metal thread 2 x M25 1 2261 585 609 1 2261 586 609
eLLK 92 LED 800 NE 2/6-2M 1) 2 x 6 – x 4 x M25, metal thread 4 x M25 1 2261 585 611 1 2261 586 611
eLLM 92 LED 400 NE 2)
eLLM 92 LED 400 NE 1/3-1K 1 x 3 – – 1 x M25, plastic 1 2273 585 101 1 2273 586 101
Type Version Terminals Throughwiring


single-ended
Throughwiring


twin-ended
Cable gland/
thread
Threaded
plug
Blanking


plug
Order No.
for
110-127 V AC
for
220-254 V AC
eLLM 92 LED 400/800 NIB - CSA2)
eLLK 92 LED 400 NE CSA3) 2/6-2 NPT 2 x 6 – x 2 x M25 - 3/4’’ Myers hub 2 x M25 1 2260 579 333 1 2260 579 311
eLLK 92 LED 800 NE CSA3) 2/6-2 NPT 2 x 6 – x 2 x M25 - 3/4’’ Myers hub 2 x M25 1 2261 579 333 1 2261 579 311
eLLK 92 LED 800 NIB HT - 4000 K für Tu ≤ +55 °C 2)
eLLK 92 LED 800 NIB HT 1/6-1K 1 x 6 x – 2 x M25, plastic 1 1 2261 581 401 1 2261 581 101
eLLK 92 LED 800 NIB HT 2/6-2K 2 x 6 – x 2 x M25, plastic 2 x M25 1 2261 581 403 1 2261 581 103
eLLK 92 LED 800 NIB HT 1/6-1M 1) 1 x 6 x – 2 x M20, metal thread 1 x M20 1 2261 581 409 1 2261 581 109
eLLK 92 LED 800 NIB HT 2/6-2M 1) 2 x 6 – x 4 x M20, metal thread 2 x M20 1 2261 581 411 1 2261 581 111
eLLK 92 LED 800 NIB HT - 5600 K für Tu ≤ +55 °C 2)
eLLK 92 LED 800 NIB HT 1/6-1K 1 x 6 x – 2 x M25, plastic 1 1 2261 582 401 1 2261 582 101
eLLK 92 LED 800 NIB HT 2/6-2K 2 x 6 – x 2 x M25, plastic 2 x M25 1 2261 582 403 1 2261 582 103
eLLK 92 LED 800 NIB HT 1/6-1M 1) 1 x 6 x – 2 x M20, metal thread 1 x M20 1 2261 582 409 1 2261 582 109
eLLK 92 LED 800 NIB HT 2/6-2M 1) 2 x 6 – x 4 x M20, metal thread 2 x M20 1 2261 582 411 1 2261 582 111
Scope of delivery including LED-module, without fixing material
Metal cable glands see catalogue part 2: 2.3.12 ff
1) with metal thread, without cable gland
2) Self-contained emergency light fitting
3)for use according to NEC-standards

Accessories
Type Order No.
Battery set Type 2710-3 with LED display and microprocessor-monitoring, complete 2 2710 904 000
Single sided through wiring 2/6 with 2 entries M25, incl. terminals and mounting material
for eLLM 92 LED 400/800
2 2218 602 000
