Fireye® provides a variety of flame safeguard and combustion controls to the HVAC market place. Our BurnerLogix®, Flame Monitor® and MicroM® families provide safe and reliable light off of packaged burners used on commercial and industrial boilers as well as direct fired make up air units and commercial hot water heaters. Anywhere you are trying to safely control a flame, you will find a Fireye control.

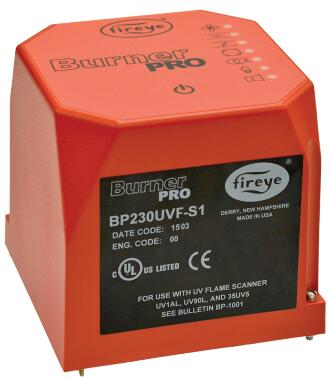

BurnerPRO Burner Management Control System
The Fireye BurnerPRO is a compact, microprocessor based, burner management control system designed to provide the proper burner sequencing, ignition and continuous flame monitoring for commercial heating and process equipment firing oil and gas fuels. The system is designed for use in non-permanent operations that requires burner recycle at least once every 24 hours.
Flame monitoring for the UV version is accomplished by the built in amplifier and compatible UV scanner. Control functions and timings are factory set via unique microcontroller firmware. Through seven SMART LEDs, the control provides current operating status and lockout information in the event of a safety shutdown. Refer to the BP-1001 bulletin ordering information section for the various combinations of control functions and timings.
A complete BurnerPRO system includes the BP110/230 and appropriate flame scanner and wiring base. The BurnerPRO performs a safety self test on every start. If a flame is detected prior to a start or during the purge cycle, the fuel valves are not energized and the control locks out. The LEDs and alarm relay is used to annunciate the presence of a lockout condition.

TECHNICAL SPECIFICATIONS
Supply Voltage: BP110UVF 110 VAC (+20%, -15%) 50/60Hz
 BP230UVF 230 VAC (+10%, -15%) 50/60Hz
Power Consumption: 7 VA
Temperature Rating: Operating -40°C to +60°C (-40°F to 140°F)
 Storage -50°C to +85°C (-58°F to 185°F)
Protection Category: IP44
Dimensions:
Control Unit: 4.15” (105mm) L x 4.15” (105mm) W x 5.0” (127mm) H
 (with base)
Weight: 2.5 lbs (1.13kg)
The BurnerPRO provides the proper burner sequencing, ignition and continuous flame
monitoring for commercial heating and process equipment firing oil and gas fuels. The system
is designed for use in non-permanent operations that requires burner recycle at least once
every 24 hours. Seven SMART LEDs provide current operating status and lockout information
in the event of a safety shutdown.


60-2944-1
Wiring Base


Open base with terminal block and knockouts w/
grounding finger, 4.2”L x 4.2”W x 1.22”H


BurnerPRO Bulletins
Pub No.
Product
BP-1001 Fireye BurnerPRO microprocessor-based integrated burner management control. UV- only detection 133-766 Installation Instructions
Terminal block wiring base for BurnerPRO flame safeguard and boiler control. Used with 'F' type only. UV and FR detection.
BPT-1000 Test Unit for BurnerPRO Controls BP-1002 Fireye BurnerPRO microprocessor-based integrated burner management control. UV and FR detection.
