INTEGRATED & DISCRETE SCANNERS

Flame Scanner Products

INTEGRATED SCANNERSFireye® provides a variety of UV and IR flame scanners which accurately detect the presence or absence of flame in a combustion chamber. Our scanners include advanced sensors and algorithms that can discriminate its target burner from adjacent flames in the same combustion chamber. Our scanners can be used with all fuel types and burner configurations. Our InSight and Phoenix families are integrated designs which include all the appropriate detection and amplification circuitry in one compact unit.

DISCRETE SCANNERS

Fireye provides a variety of UV and IR flame scanners with both self-check and non-self check capabilities. These scanners require a separate amplifier for single burner or multi-burner applications. The following Fireye flame scanners are used in conjunction with the appropriate Fireye flame safeguard controls to provide reliable flame detection on a variety of burner applications and fuel types. Anywhere you are trying to safely control a flame, you will find a Fireye control.


Integrated Flame Detection
Fireye® provides a variety of flame scanners which accurately detect the presence or absence of flame in a combustion chamber. Our scanners include advanced sensors and algorithms that can discriminate its target burner from adjacent flames in the same combustion chamber. Our scanners can be used with all fuel types and burner configurations. Our InSight Scanners® and Phoenix families are integrated designs which include all the appropriate detections and amplification circuity in one compact unit.

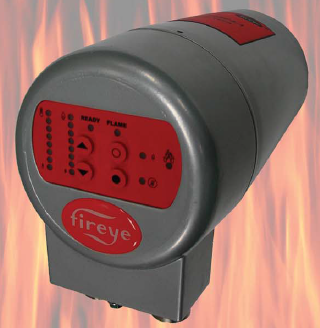

PARAGON™ (105F1-1) FLAME SCANNER  Type 105F1-1 Integrated Flame Scanner and Temperature Analyzer. Paragon scanner provides high integrity sensing of multiple flame properties, including Amplitude, Flicker Frequency and Flame Learned vs. Stored Curve Fitting.

Paragon Flame Scanner
Pub No.
Product
133-699 Instuction Sheet - Flange Assembly Kit for Paragon Scanners 133-706 60-2862 Junction Box for 105F1-1 Paragon Flame Scanner
133-709 59-535C-xxx 59-5363C-xxx Cable Assemblies for 105F1-1 Paragon Flame Scanner 133-710 59-5356C-xx-TB Wiring Harness for 105F1-1 Paragon Flame Scanner
CU-108 TYPE 105F1-1 Integrated Flame Scanner and Temperature Analyzer, 129-182, 105F1-1CG CU-111 Paragon Explorer Lite Communication SoftwareFor Fireye Paragon Scanners using Windows XP
UC-4851 UC485 Optically isolated USB to RS422/RS485 converter CU-109 Fireye ExplorerCommunication SoftwareFor Fireye Flame Scanners with communication facilities (XP & Win 7)
