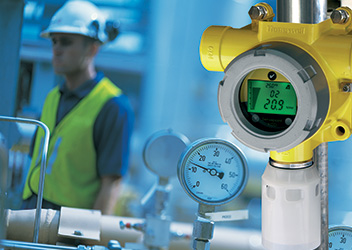

Honeywell Analytics Sensepoint XCD

Transmitter provides comprehensive monitoring of combustible, toxic and Oxygen gas hazards in potentially explosive atmospheres - indoors and outdoors.

Features & Benefits
All-in-one gas monitoring solution
Proven SurecellTM electrochemical sensors
Global approvals
Quick Specs
Input voltage range: 16 to 32 VDC (24 VDC nominal)
Communication: RS485, MODBUS RTU

Certified temperature range: 40° to +149°F (-40° to +65°C)

Product Overiew
Sensepoint XCD now has remote monitoring capabilities for its toxic and Oxygen sensors. Its remote capability is designed to offer excellent flexibility of use and is an ideal solution for hard-to-reach locations or areas where the transmitter needs to be separate from the sensor. With remote toxic and Oxygen sensor mounting of up to 100 feet (30m) away from the transmitter, Sensepoint XCD provides a robust monitoring solution even in challenging environments where detection is difficult, including applications where the point of detection is in an area that is not easily accessible or where the detector would not be visible, like in high or low level concealed areas or outside a room being monitored.


Sensepoint XCD is easy to use. The sensor simply plugs into the bottom of the transmitter and the transmitter automatically configures itself accordingly. Users can modify detector operation using the LCD and magnet switches without ever needing to open the unit. This enables one-man, non-intrusive operation and reduces routine maintenance time and costs.

A tri-color backlit LCD clearly indicates the unit’s status at a glance, even from a distance. A steady green backlight indicates normal operation, flashing yellow indicates fault and flashing red indicates an alarm.

All detectors are supplied pre-configured and include two programmable alarm relays, one programmable fault relay as well as an industry standard 4-20mA output (sink or source selectable) and MODBUS communication. The scale, range, relay operation, alarm set point and electronic tag number of the detector can be adjusted using the transmitter's LCD and non-intrusive magnetic switches. Outputs are automatically inhibited during adjustment, thereby reducing the risk of false alarm at the control panel during maintenance.

Additional Features and Benefits:
All-In-One Gas Monitoring Solution

Flammable (catalytic or infrared), toxic and oxygen versions available
Serves new/retrofit, indoor/outdoor applications
Stainless steel or aluminum explosion-proof housing options
IP66 as standard
Proven and Reliable Sensor Technology

SurecellTM electrochemical sensors
Poison immune infrared sensors
Poison resistant catalytic bead sensors
Long life sensors
Global Approvals

US and Latin America, European, Canadian and Asian
Compliant with UL, INMETRO, ATEX,  IECEx, CSA, KTL, PA, GB and CCCF standards
Easy to Use

User friendly and intuitive tri-color backlit display with digits, bar graph and icons
Fully configurable via magnetic switches
Optional remote sensor mounting
Selectable sink or source 4-20mA output
Auto-inhibit during maintenance
MODBUS communications for remote diagnostics/configuration
Cost Effective

Common transmitter platform
Minimal training required
Reduced spares
Non-intrusive, one-man operation
Plug-in sensor replacement
MODBUS multi drop option offers cabling savings
Simple Installation

Plug-in display module removes to give access to terminal area
Integral mounting bracket
2 x M20 or ¾” NPT cable/conduit entries
Removable plug/socket type terminal blocks for
Sink/source switch to suit preferred wiring topology
Integral mounting plate attaches to surface, horizontal or vertical piping

Sensepoint XCD SPECIFICATIONS
Flammable, toxic and oxygen gas detector
for industrial applications

Use 3 wire, 4-20mA and RS485 MODBUS output fixed point detector with in-built alarm and fault relays for the protection of personnel and plant from flammable, toxic and
Oxygen hazards. Incorporates a transmitter with local display and fully configurable via non-intrusive magnetic switch interface.
Electrical
Input Voltage Range 12 to 32VDC (24VDC nominal)
Max Power Consumption Maximum power consumption is dependent on the type of gas sensor being used. Electrochemical cells = 3.7W, IR = 3.7W
and catalytic = 4.9W. Maximum inrush current = 800mA at 24VDC
Current Output Sink or source
Relays 3 x 5A@250VAC. Selectable normally open or normally closed (switch) and energized/de-energised (programmable)
Alarm relays default normally open/de-energized. Fault relay default normally open/energized
Communication RS485, MODBUS RTU
Construction
Material Housing: Epoxy painted aluminium alloy ADC12 or 316 stainless steel
Sensor: 316 stainless steel
Weight (approx) Aluminium Alloy LM25: 4.4lbs
316 Stainless Steel: 11lbs
Mounting Integral mounting plate with 4 x mounting holes suitable for M8 bolts. Optional pipe mounting kit for horizontal or vertical pipe Ø1.5 to 3" (2" nominal)
Cable Entries UL\cUL versions: 2 x ¾”NPT conduit entries. Suitable blanking plug supplied for use if only 1 entry used. Seal to maintain IP rating; ATEX/IECEx versions: 2 x M20 cable entries
Environmental
IP Rating IP66 in accordance with EN60529:1992
Certified Temperature Range -40ºF to +149ºF (-40ºC to +65ºC)
Detectable Gases and XCD Sensor Performance
Gas User Selectable
Full Scale Range
Default
Range
Steps User Selectable
Cal Gas Range
Default Cal
Point
Response Time
(T90) Secs
Accuracy Operating Temperature
Min Max
Default Alarm Points
A1 A2
Electrochemical Sensors
Oxygen 25.0%Vol. only 25.0%Vol. n/a 20.9%Vol. (Fixed) 20.9%Vol. <30 <±0.5%Vol. -20°C / -4°F 55°C / 131°F 19.5%Vol. q 23.5%Vol. p
Hydrogen Sulfide* 10.0 to 100.0ppm 50.0ppm 0.1ppm
30 to 70% of selected
full scale range
25ppm <50 <±1ppm -20°C / -4°F 55°C / 131°F 10ppm p 20ppm p
Carbon Monoxide** 100 to 1,000ppm 300ppm 100ppm 100ppm <30 <±6ppm -20°C / -4°F 55°C / 131°F 30ppm p 100ppm p
Hydrogen 1,000ppm only 1,000ppm n/a 500ppm <65 <±25ppm -20°C / -4°F 55°C / 131°F 200ppm p 400ppm p
Nitrogen Dioxide*** 10.0 to 50.0ppm 10.0ppm 5.0ppm 5.0ppm <40 <±3ppm -20°C / -4°F 55°C / 131°F 5.0ppm p 10.0ppm p
* Lowest Alarm Limit = 1ppm; Lowest Detection Limit = .5ppm
** Lowest Alarm Limit = 15 ppm; Lowest Detection Limit = 10ppm
*** Lowest Alarm Limit = 0.6 ppm; Lowest Detection Limit = 0.3ppm
Catalytic Bead Sensors
Flammable 1 to 8 20.0 to 100.0%LEL 100%LEL 10%LEL 50%LEL <25 <±1.5%LEL -20°C / -4°F 55°C / 131°F 20%LEL p 40%LEL p
Infrared Sensors
Methane 20.0 to 100.0%LEL 100%LEL 10%LEL 50%LEL <30 <±1.5%LEL -20°C / -4°F 50°C / 122°F 20%LEL p 40%LEL p
Propane 20 to 100%LEL 100%LEL 10%LEL 50%LEL <30 <±1%LEL -20°C / -4°F 50°C / 122°F 20%LEL p 40%LEL p
Carbon Dioxide 2%Vol. only 2%Vol. n/a 1%Vol. <30 <±0.04%Vol. -20°C / -4°F 50°C / 122°F 0.4%Vol. p 0.8%Vol. p
Certification
US, Latin America, Canada UL/c-UL - Class I, Division 1, Groups B, C and D, Class I, Division 2, Groups B, C & D, Class II, Division 1, Groups E, F & G, Class II, Division 2, Groups F & G. -40°C to +65°C
European ATEX Ex II 2 GD Ex d IIC Gb T6 (Ta -40ºC to +65ºC) Ex tb IIIC T85°C Db IP66
International IEC Ex d IIC Gb T6 (Ta -40ºC to +65ºC) Ex tb IIIC T85°C Db IP66
EMC CE: EN50270:2006 EN6100-6-4:2007
Performance UL508; CSA 22.2 No. 152 (flammable gasses, excludes infrared sensors); ATEX, IEC/EN60079-29-1:2007, EN45544, EN50104, EN50271; China: PA Pattern
Measurement (for transmitter and toxic gas sensors) “CCCF” Shenyang for Flammable (fire dept approval)
