Honeywell霍尼韦尔火焰探测器FSL100

FSL100 火焰探測器

FSL100 Series Flame Detectors  UV, UVIR, IR3

The FSL100 Series of flame detectors from Honeywell delivers robust, fast and reliable

detection of flaming fires in a wide range of applications.

The range consists of UV, UVIR and IR3 flame detectors. All utilise sophisticated sensing

and signal analysis to detect fires quickly while also rejecting false alarms.

The FSL100 may be small and lightweight for easy installation but they are designed

to work in tough environments both in and out of doors as well as potentially explosive

atmospheres.

With a large field of view they can detect a range of different types of fire including

hydrocarbon and non hydrocarbon sources.

Available in UV, UVIR and 3IR we have your application covered.

Suitable for Many Applications

• UV, UVIR and IR3 available

• Hydrocarbon and non hydrocarbon sources

• Use in potentially explosive atmospheres

• Indoor and outdoor operation

• High visibility red or discrete white models available

Great Performance

• Approved to EN54-10 and FM3260 flame

detector standards

• Comprehensive automatic self test

• Remote manual self test option

Fast & Reliable

• High speed sensors and microprocessor

• Sophisticated analysis algorithms

• Continuous health monitoring

• False alarm rejection

Reduced Life Cost

• Long life elements

• Pressure compensation to avoid contamination

• 2 year warranty

• Buy with confidence

Ease of Installation and Use

• Relay and mA outputs as standard

• Lightweight GRP housing

• Pre-formed knockouts

• Optional swivel mounting bracket

• Long range test lamp available

UV, UV/IR, IR3

Flame Detectors

FSL100-UV

• Suitable for indoor applications, for

example fume hoods and hydrogen

storage areas

• Effective solution for materials burning

with low temperatures, e.g. Sulphur

• Detects fires caused by higher

hydrocarbons (wood, paper, petrol)

as well as hydrogen and lower

hydrocarbons such as methanol

and methane

• Good resistance against the

influences of:

- Direct and reflected sunlight

- Artificial light, such as fluorescent

tubes and glass covered halogen

lamps

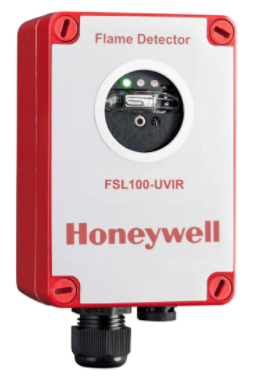

FSL100-UVIR

• Analysis of the flame flicker-frequency

for improved false alarm rejection

• Dual sensing methodology enables

a wide range of hydrocarbon and

non-hydrocarbon fires to be

effectively detected

• Monitors higher hydrocarbons flames

(wood, paper, petrol) but also

hydrogen and lower hydrocarbons

such as methanol and methane

• Good resistance against the influences of:

- Direct and reflected sunlight

- Artificial light, such as fluorescent tubes

and glass covered halogen lamps

- Arcs and electric discharges (static

or from e.g. electric motors)

- The radiation from electric welding

provided that the electric welding takes

place at a distance more than 3 meters

from the flame detector (a welding rod

contains organic compounds which

show flame phenomena)

FSL100-IR3

• Analysis of the flame flicker frequency

for improved false alarm rejection

• Particularly suited to liquid

hydrocarbon and dirty fires

• Affected less by window

contamination or smoky fires

• Detects higher hydrocarbons flames

(wood, paper, petrol) and lower

hydrocarbons such as methanol

and methane

• Good resistance against the

influences of:

- Direct and reflected sunlight

- Artificial light, such as fluorescent

tubes and glass covered halogen

lamps

- Arcs and electric discharges (static

or from e.g. electric motors)

- The radiation from electric welding

provided that the electric welding

takes place at a distance more

than 3 meters from the flame

detector (a welding rod contains

organic compounds which show

flame phenomena)

• Especially suitable for smoky fires.

Analysis of the flame flicker frequency

for improved false alarm rejection

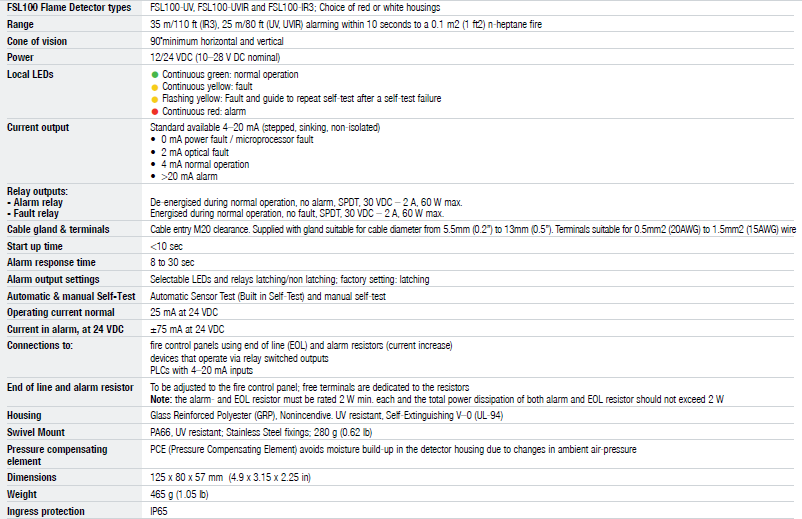

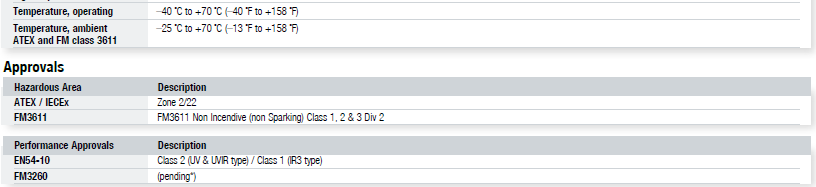

Specifications: FSL100 Series Flame Detectors

Ordering Information

Part Number Description

FSL100-UV (red housing) UV flame detector

FSL100-UV-W (white housing) Suitable for ATEX zone 2/22; FM 3611 Class 1, 2 & 3 Div 2

EN54-10 (HIGH sensitivity) certificate

FM3260 approval (pending*)

FSL100-UVIR (red housing) UV/IR flame detector

FSL100-UVIR-W (white housing) Suitable for ATEX zone 2/22; FM 3611 Class 1, 2 & 3 Div 2

EN54-10 (HIGH sensitivity) certificate

FM3260 approval (pending*)

FSL100-IR3 (red housing) Triple IR flame detector

FSL100-IR3-W (white housing) Suitable for ATEX zone 2/22; FM 3611 Class 1, 2 & 3 Div 2

EN54-10 (HIGH sensitivity) certificate

FM3260 approval (pending*)

FSL100-SM21 Swivel mount (White)

FSL100-TL FSL100 test lamp, incl. universal charger and carrying case; safe areas only

FSL100-TLX FSL100 test lamp, incl. carrying case; intrinsically safe; hazardous area
