Date:2017-11-1     Hits:6207

CM4有毒气体侦测器

CM4 4点系统

经济高效的低维护成本4点探测器,连续有毒气体监控,采用Chemcassette技术实现PPB级别探测

CM4有毒气体探测器,无干扰,运行维护成本低,适于半导体、制药和化学工业。

就半导体、制药和化学工业而言,CM4气体探测器采用了先进的化学纸带技术,具有无干扰、低运行维护成本的特点。

CM4的1/4采样管可轻松布置在制程区域,排气管道,气柜等应用场合。

各种标准信号输出使得CM4具有高度的灵活性。可以快速兼容接入现有的报警控制系统。

可选的机架安装外壳丰富了产品应用范围,提供了便捷的防护能力。

该仪器能探测同一族内(烷类、无机酸等等)的25余种气体。


·4点持续监测,时刻监视
·Chemcassette技术可靠且无干扰的方法提供了事件的物理性证据。
·模拟和串行输出,按照入通告和关闭系统,十分简易
·300’(90m)取样距离检测仪定位便捷
·桌面、墙面或机架安装方式,能满足不同安装要求
·可提供LonWorks通讯方式,安装成本低廉
·可选购串行打印部件
·具有声光报警功能
·具有声光报警功能
可探测气体类型
·烷类:SiH4、PH3、AsH3...
·无机酸类:HCL、HBr...
·氯气(CL2)氨类(NH3)
·肼、联氨:MMH、N2H4、VDMH...
·其它:COCL2

CM4 有有毒氣體監控器
可運用 Chemcasstte® 於 4 個監測點持續監控有有毒氣體。
產品特色與效益
可隨時進行全面監測
可輕鬆安裝於幾乎所有警報與停機系統中
可提供事件的具體證據

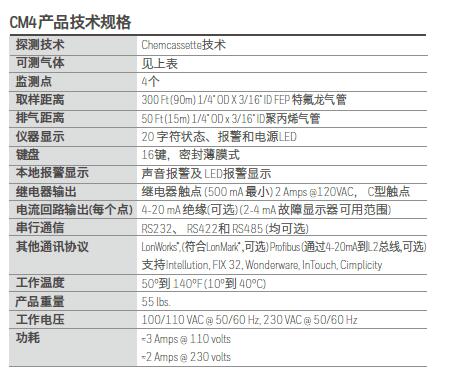

產品規格一覽
Chemcassette® Technology
Analog and Serial Outputs
300' (90m) Sampling Distance
LonWorks® Interface Available
產品概述
這款 CM4 裝置代表了無干擾、低維護需求、低擁有成本的新解決方案,適用於半導體、製藥及化工產業。

精簡化的 1/4 吋圓筒設計,徹底減少了對製程區、輸送管及氣瓶室等位置的影響。此外,還可提供多種不同的訊號輸出選擇,使 CM4 堪稱為真正具備絕佳靈活度的產品。 易於安裝於大多數的建築警報系統中。

選購機架安裝外殼與印表機,能使產品設備更為齊全,可提供便利的防護與記錄功能。 此裝置可偵測超過 25 種氣體,某些屬於同一類型 (氫化物、礦物質、酸性氣體等)。

其他產品特色與效益:
•  可於 4 個監測點持續監控
   可隨時進行全面監測
•  Chemcassette® 技術
    可靠的無干擾偵測方法,可提供事件的具體證據
•  類比與串列輸出
   可輕鬆安裝於幾乎所有警報與停機
   系統
•  300' (90 公尺) 採樣距離
   監控器不僅方便安裝,且不會對空間造成影響
•  桌面、牆面或機架安裝版本
    可符合您任何使用需求的靈活彈性
•  可提供 LonWorks® 介面
    可允許點對點通訊,且安裝成本低廉
•  串列印表機選擇
   所有重要事件及系統配置均可建檔
•  完善整合的音訊與視覺警報功能
    可輕鬆識別所有事件



CM4毒气体侦测器

Honeywell CM4 Toxic Gas Monitor

Honeywell Analytics CM4 Continuous Multipoint Monitor

The Honeywell Analytics CM4 is a hazardous gas monitor for continuous monitoring at 4 points.

This unit is supplied with different options, as table top, wall mount or a rack mount configuration (selections).

Over 30 gas calibrations are available with the CM4.



Features & Benefits

  Total surveillance at all times

  Easy installation into virtually all annunciation and shutdown systems

  Physical evidence of events

Quick Specs

  Chemcassette� Technology

  Analog and Serial Outputs

  300' (90m) Sampling Distance

  LonWorks� Interface Available



Ordering Information



Model CM4 Monitor Base Unit



1874-1000 For 100/120 VAC, 50/60 Hz operation

1874-1002 For 220/240 VAC, 50/60 Hz operation



Model CM4-P Pyrolyzing Gas Monitor For NF3 Base Unit


1874-0000 100/110 VAC version

1874-0002 230 VAC version



Installation Kit

874008 Includes sample and exhaust tubing, technical handbook, and installation drawings/instructions



Configuration Kit

1874-0091 Table mount kit: Includes Input/Output module, table ribbon cable assembly, table I/O module cover, rubber feet, label kit, I/O insulator, and hardware package

1874-0093 Wall mount kit: Includes wall mounting brackets, Input/Output module, ribbon cable assemblies, I/O module cover, rubber feet, label kit, I/O insulator and hardware package

1874-0197 Rack Mount Kit �A� : For a new CM4 (only) to be added first revision enclosure (original System 16 style) in the field. Includes I/O module and bracket for rack mounting, ribbon cable assembly, tubing, manifold, serial pcb cover, label kit, I/O insulator label, slide/bracket assemblies and hardware package

1874-0095 Rack mount Kit "B": For a new CM4/CM4-P ordered concurrently with a rack enclosure (Schroff version). Includes all configuration changes required to permit quick installation of a new CM4 unit into a new MDA rack. I/O module is installed in CM4 enclosure, all slides are installed on units

1874-0149 Rack Mount Kit �C� : For a new CM4/CM4-P rack mount version to be field installed into a previously purchased Schroff enclosure. I/O module wrapped separately for attachment to rear panel of enclosure prior to installation of unit. Slides supplied with enclosure system



Power Cords



874333 North America (120VAC)

1874-0112 Japan (100VAC)

874558 Great Britain

874561 Europe

874557 Australia

874560 Switzerland

874559 Denmark



Calibration



1971-0009 Ammonia (II)/ Amines, DMA, TDMAT

1971-0206 Ammonia - Extended Play ****

1971-0269 Ammonia XP4, DMA, TDMAT

1971-0021 Chlorine III** (Chlorine, Nitrogen Dioxide)

1971-0171 Chlorine - Extended Play

1971-0267 Chlorine XP4

1971-0030 Chlorine Dioxide

1971-0141 Fluorine, Chlorine

MVIP2025-C Hydrazine (UDMH)

1971-0164 Hydrazine (N2H4)

874032 Hydrides (Arsine [Std], Arsine [Dry], Diborane, Hydrogen Selenide, Hydrogen Sulphide, Phosphine, Silane, Tertiary Butyl Arsine)

1971-0104 Hydrides - Extended Play* (Arsine, [Std], Diborane, Phosphine, Silane)

1971-0265 Hydrides XP4 (Arsine, [Std], Diborane, Phosphine, Silane, Hydrogen Selenide, Hydrogen Sulphide, Hydrogen Sulphide Low Level, Hydrogen Sulphide Dry, Tertiary Butyl Arsine, Tertiary Butyl Phosphine)

1971-0105 Hydrides Extended Play* (Arsine [Low Level] only, Germane)

1971-0266 Hydrides XP4 (Arsine [Low Level] only, Germane)

1971-0010 Hydrogen Cyanide

1971-0014 Hydrogen Sulphide

1971-0020 Hydrogen Sulphide (Low Level)

1971-0016 Phosgene

1971-0120 Phosgene - Extended Play***

1971-0270 Phosgene XP4, Phosgene High Level

874038 Mineral Acids (Hydrogen Bromide, Hydrogen Chloride, Hydrogen Fluoride, Hydrogen Iodide)**

1971-0032 Mineral Acids (Low Levels) Hydrogen Bromide, Hydrogen Chloride, Boron Trifluoride

1971-0214 Mineral Acids XP (Boron Trifluoride, Hydrogen Bromide [std and low level], Hydrogen Chloride, Hydrogen Cyanide, Hydrogen Fluoride [std and low level], Nitrogen Trifluoride)

1971-0253 Mineral Acids XP Low Level HF calibration. May require export license from the US Department of Commerce - See bulletin 6023.

1971-0272 Mineral Acids XP4 (4 month) (Boron Trifluoride, Hydrogen Bromide [std and low level], Hydrogen Chloride, Hydrogen Cyanide, Hydrogen Fluoride [std only], Nitrogen Trifluoride)

1971-0268 Mineral Acids XP4 (4 month), includes Hydrogen Fluoride Low Level. May require export license from the US Department of Commerce - See bulletin 6023.

1971-0217 Nitrogen Triflouride XP (CM4-P only)

1971-0271 Nitrogen Trifluoride XP4 (CM4-P only)

1971-0040 Nitrogen Trifluoride (CM4-P only)

1971-0260 Sulphur Dioxide

MVIP2149-C Triethyl Amine



* Requires special XP Hydrides Chemcassette 1874-9300. Order separately. ** Points monitoring corrosive or mineral acid gases in dusty or outdoor locations (< Class 10,000 clean room) should use end of line dust filters fitted with Teflon membranes. See Technical Note 1998-0080 for further information.

*** Requires special XP Phosgene Chemcassette 1874-9307. Order separately.

**** Requires special XP Ammonia Chemcassette 1874-9309. Order separately.



Alarm Level Settings



1874-0330 1 x TLV and 2 x TLV (A2) are standard alarm settings. However, 1/2 x TLV (A1) and 1 x TLV (A2) can be factory preset. Order if required Seven (7) Unit Enclosure for CM4

1874-0050 Seven (7) Unit Enclosure for CM4: 100- 120VAC

1874-0054 Factory installed kit for 230VAC operation (for European systems)



Five (5) Unit Plus Printer Enclosure for CM4



1874-0051 Five (5) unit plus printer enclosure for CM4: 120VAC

1874-0052 Factory installed kit for 100VAC operation

1874-0053 Factory installed kit for 230VAC operation



General



1874-0056 Blanking panels for enclosure positions without monitors or printer installed

1874K0350 Rack wiring kit for 7 LonWorks CM4s (for use w/Schroff enclosure)

1874-0194 Caster option (permits Schroff enclosure to be moved for cleaning or maintenance purposes. Factory installation highly recommended



Special Configuration Options



874018 Duty cycle option: Allows selection of time period before next window advance. Reduces tape consumption

874016 Remote alarm reset contact

874010 Sample line isolation valve (per point)



4-20 mA Outputs

1874A0304 4-20mA option for �new� style unit (w/IRDA port) (Single card [1 per CM4] with 4 isolated channels, cannot be used for CM4-P)

1874-0335 4-20mA non-isolated for CM4 units (Rev 8 and under) and CM4-P units (all Revs) (choose this 4-20mA option carefully. Installation guidelines, found in the CM4 technical handbook, must be followed exactly, to prevent electrical noise from entering the instruments. [4 per CM4 needed]



Serial Communications Interfaces

874021-R RS232 for serial printer or remote unidirectional interface (50 ft normal distance, cable dependent)

874022-R RS232 for bidirectional remote communication

874023-R RS422 for serial printer or remote unidirectional interface

874024-R RS422 for remote bidirectional communication

874327-R RS485 for remote bidirectional communication

1874-0332 LonWorks interface option (only with new units)

1874-0344 LonWorks interface option (retrofit)

1874A0355 LonWorks wiring needed for above LonWorks options, if used in non-rack mount applications

1998-0272 LonWorks network considerations Tech Note



Option, Printer PCB Configuration for Printer Share Box



1874-0323 Single printer configuration

1874-0324 Printer share box configuration



Sample Tubing

102628 Tubing, FEP Teflon 0.190" I.D. x 0.250" O.D - 400 ft roll (121m) Alternate tubing for Vertex samples lines. Used with Vertex M where longer sample line length for multiple analysers are required. Consult the transport time chart in the Vertex Technical Handbook for additional information

0235-0109 Tubing, FEP Teflon 0.190" I.D.-1000 ft roll (304m)

1283K1090 Duct adaptor for 1/4" O.D. tubing for 4-26" round ducts



Field Upgrade Kits

1874-0090 Table mount field kit (includes table ribbon cable assembly, table I/O module cover, rubber feet, label kit, and hardware package)

1874-0092 Wall mount field kit (includes wall mounting brackets, ribbon cable assembly, I/O module cover, label kit and hardware package)

1874-0094 Rack mount conversion kit (includes all parts and instructions necessary to change a previously purchased wall or table mount unit to a Schroff rack mount unit)

874550 Additional rack mounting kit for earlier (System 16) style MDA enclosure (includes slide/bracket assemblies, I/O module mounting bracket assembly, installation drawing and hardware)

0270-0001 Rack mounting slides for non-Honeywell Analytics 19" racks

MVIP3251 Enclosure printer kit for customer installation into Schroff enclosure purchased previously



Required for above listed printer field conversion kit or for separate field installed printer

1874-0007 Printer share box kit (6 position) 110VAC includes (qty. 6) 10 ft cables

1874-0008 Printer share box kit (6 position) 230VAC includes (qty. 6) 10 ft cables

1874-0010 Printer share box kit (11 position) 110VAC includes (qty. 11) 10 ft cables

1874-0011 Printer share box kit (11 position) 230VAC includes (qty. 11) 10 ft cables



Spare cables for printer share box to CM4 connection (DB25 to DB9)

1874-0031 50 ft (15 m) cable

1874-0033 10 ft (3 m) cable



Printers



874012 Okidata desktop printer option, 24 pin, dot matrix - non-rack mount, serial input Includes 10 ft cable 110/115 VAC



Accessories

874264 Optics verification card

971305 Technical Handbook - English

1998M0043 Technical Handbook - Clean Room

1998M0086 Technical Handbook - French

1998M0119 Technical Handbook - German

1998-0151 CM4-P Supplement

1998-0002 CM4/CM4-P Quick Reference Card

1991-0002 Quick Reference Card holder



Consumables

1991-0063 Rack Mount Printer Paper

0185-0022 Printer Ribbon (Perifics)

0185-0029 Replacement Ribbon Cartridge (Okidata)

874212 Chemcassette Carrier (w/o Chemcassette)

780248 End of Line Particulate Filter. For use as End of Line filter for Non-Corrosive gases

1991-0147 End of Line Particulate Filter for Corrosive Gases, Disposable. This disposable filter provides protection against particulate build up in the sample line when monitoring for Corrosive Gases

1830-0055 End of Line Particulate Filter for Corrosive Gases, Reusable. This reusable filter housing provides protection against particulate build up in the sample line when monitoring for Corrosive Gases. Replaceable filter element (P/N 0235-1072) purchased separately.

0235-1114 Dust Filter for Schroff Enclosure

0235-1072 Replacement "Corrosive" Filter Elements (pk 100). For use in 1830-0055 filter housing

1874-0139 Freon Filter for CM4-P (pk of 4)

1295K0497 H2S in line Scrubber Filter (1 per individual inlet line). Up to 3 months use

874553 Blanking Panel for earlier style MDA enclosure

0235-1159 Pump Diaphragm (HYPALON), 60 Hz

0235-1108 Pump Repair Kit (HYPALON), 60 Hz

0235-0095 Union Fitting
